Miscellaneous Materials

Silica (Fused Quartz), Saw Blades, Piezoelectrics, Other Crystal Substrates, Other Electronic Materials, Polymer wafers, Glass, Roughness <1nm RMS, S/D 60/40,, Quartz, Sapphire, SoS, SOI, Solar Cells & Wafers, Wafer Cassettes
Silica (Fused Quartz)
Note: Surface - P = Polished, G = Ground, C = AsCut
Add to
Cart		 Item Qty in
Stock		 Price
$/unit		 Material Form. Diam. Thck
(μm)		 Surf. Source Comment Comment
5476 100 $8.00 Fused Silica JGS1 grade 20×20mm 500 P/P HFE 60/40 TTV<5um
5286 5 $64.80 Fused Silica JGS2 grade 6" 2,000 P/P CQT No Flats TTV<2um, Bow<20um, Ra<1nm

Saw Blades

Add to
Cart		 Item Qty in
Stock		 Price
$/unit		 Type Diam. Opening Source Comment
1896 7 $50.00 ID Saw 16" 6" Diamotec TRAC 470 diamond ID saw blades for STC 16" ID saws, 6" opening, 0.1mm thick web

Piezoelectrics
Note: Surface - P = Polished, G = Ground, C = AsCut
Add to
Cart		 Item Qty in
Stock		 Price
$/unit		 Material Form. Diam. Thck
(μm)		 Surf. Source Comment Comment
L04 4 $125.00 LiTaO3 Z cut 3" 1mm P/P SEMICON   no=2.176; ne=2.180 gradient 0.005%/cm, r33=30.4pm/V (all at 632.8nm), X flat

Other Crystal Substrates
Note: Surface - P = Polished, G = Ground, C = AsCut
Add to
Cart		 Item Qty in
Stock		 Price
$/unit		 Material Form. Diam. Thck
(μm)		 Surf. Source Comment Comment
2ct 1 $250.00 SrLaAlO4   10x10 500 P/P ITME
2bt 1 $250.00 SrLaGaO4   10x10 500 P/P ITME
2dt 1 $250.00 NdGaO3   2" 500 P/P ITME

Other Electronic Materials
Note: Surface - P = Polished, G = Ground, C = AsCut
Add to
Cart		 Item Qty in
Stock		 Price
$/unit		 Material Form. Diam. Thck
(μm)		 Surf. Source Comment Comment
BS1 1 $100.00 Borosilica pieces       ITME 21   Ultra High Res. Borosilica
c01 1 $100.00 CaF2 cylinders           Various sizes

Polymer wafers
Note: Surface - P = Polished, E = Etched, C = AsCut, Ox = Oxide (on that surface)
Add to
Cart		 Item Qty in
Stock		 Price
$/unit		 Material Orient. Diam. Thck
(μm)		 Surf. Source Resistivity
Ohmcm		 Comment
PL-002 1 $20.00 Plexiglass 101.6 ±0.5 2,250 ±250 EL-CAT MethylMethacrylate; NO Flats; no edges beveled; protective film on both sides

Glass
Note: Surface - P = Polished, G = Ground, C = AsCut
Add to
Cart		 Item Qty in
Stock		 Price
$/unit		 Material Form. Diam. Thck
(μm)		 Surf. Source Comment Comment
6469 25 $14.00 Glass BoroFloat 33 2" 1,000 P/P CQT 15.86±1.65 mm Flat P/P 2"Ø×1,000±25µm
6069 25 $18.00 Glass BoroFloat (Pyrex) 3" 350 P/P CQT 60/40 Polish TTV<3µm, Bow/Warp<10µm, Ra<0.8nm rms
6666 10 $66.00 Glass BoroFloat 33 6" 300 P/P CQT due 03/15 57.5mm Flat P/P 2"Ø×1,000±TTV<10µm, Surface

Roughness <1nm RMS, S/D 60/40,
Note: Surface - P = Polished, E = Etched, C = AsCut, Ox = Oxide (on that surface)
Add to
Cart		 Item Qty in
Stock		 Price
$/unit		 Material Orient. Diam. Thck
(μm)		 Surf. Source Resistivity
Ohmcm		 Comment


Quartz
Note: Surface - P = Polished, G = Ground, C = AsCut
Add to
Cart		 Item Qty in
Stock		 Price
$/unit		 Material Form. Diam. Thck
(μm)		 Surf. Source Comment Comment

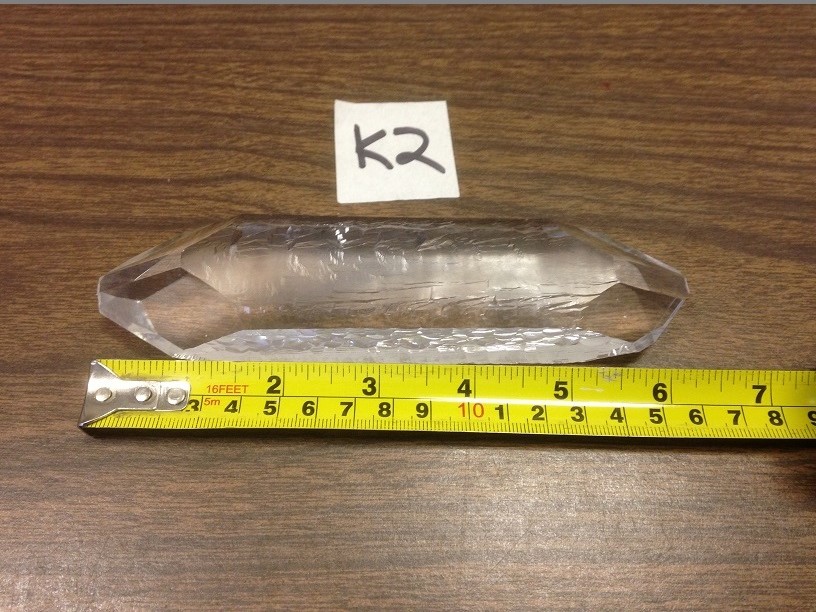

K2 1 $300.00 Alfa SiO2   150 × 35 × 28mm     ITME Quartz Crystal Ingot (296 grams); image available here
6321 20 $18.75 Quartz Z-Cut 10mm 2,500 G/G ITME Synthetic Alpha Quartz Per SEMI
C512 5 $129.00 Quartz [ST] 4" 250 P/P CQT Bow<10µm, Warp<10µm One SEMI Flat (32.5±2.5mm) at [X].
6676 50 $20.00 Glass BoroFloat 33 4" 700 P/P CQT due 03/22 60/40 Polish TTV<20µm, Ra<0.8nm rms

Sapphire
Note: Surface - P = Polished, G = Ground, C = AsCut
Add to
Cart		 Item Qty in
Stock		 Price
$/unit		 Material Orient. Diam. Thck
(μm)		 Surf. Source Flats Comment
SP1 1 $240.00 Sapphire Plate 80 x 120mm 2mm   SEMICON #6   Sapphire plate
B750 15 $24.80 Sapphire[C] [0001] ±0.5° 2" 430 ±15 P/P Xiamen One Flat TTV<4μm, in 25 wafer cst, Epi-Read
E696 10 $200.00 Sapphire[C] [0001] ±0.5° 2" 5,000 ±50 P/P Antek NO Flats Front-side Epi-Ready. Back-side Optical-polish, Flatness<5μm, in single wafer cst
6271 125 $19.60 Sapphire[C] [0001-0.2° towards[M]] ±0.1° 2" 430 ±20 P/G ElmaT 1 Flat @ [A]±0.3° Epi-Ready, Ra<0.3nm, in cassettes of 25 wafers
K245 20 $100.00 Sapphire[R] [1,-1,0,2] ±0.3° 2" 430 ±15 P/P MaxMat 1 Flat @ A-axis (1,1,-2,0), TTV<5μm, Bow/Warp<10μm,
B578 2 $100.00 Sapphire[R] [1,-1,0,2] ±0.3° 2" 430 ±15µm P/P MaxMat 1 Flat @ [C]±0.2º (16.0±0.5mm) Epi-Ready, Ra<0.3nm, TTV<5µm, Bow/Warp<10µm, in single wafer csts
5696 8 $200.00 Sapphire[R] [1,-1,0,2] ±0.5° 2" 5,000 ±50 P/P Antek NO Flats Front-side Epi-Ready. Back-side Optical-polish, Flatness<5μm, in single wafer cst
4229 5 $150.00 Sapphire[R] [1,-1,0,2] ±1° 3" 430 ±25 P/P ElmaT 1 Flat @ [C] Epi-Ready; Sealed in cassette of 5 wafers
6285 5 $80.00 Sapphire[C] [0001] ±0.5° 4" 300 ±25 P/P Xiamen 1Flat @ A-plane ±0.2° Ra<0.3nm, TTV<10μm {<3.5}, Bow/Warp<20μm, in Empak
6360 15 $66.00 Sapphire[C] [0001] ±0.5° 4" 500 ±25 P/P Xiamen 1Flat @ A-plane ±0.2° TTV<10μm {<2.5μm}. Bow/Warp<20μm, Empak cst

SoS
Note: Surface - P = Polished, E = Etched, C = AsCut, Ox = Oxide (on that surface)
Add to
Cart		 Item Qty in Stock Price $/wafer Device Layer Substrate Source Comment
Material Res Ωcm Thick μm Material Diam. Thick μm Surf
5249 2 $660.00 Intrinsic Si:-[100] > 100 0.20±5% Sapphire[R] 100 460 ±25 P/P IQE Translucent Substrate, 1Flat, 2 wafers in Empak cst

SOI

Add to
Cart		 Item Qty in Stock Price $/wafer Handle Oxide
Thick		 Device Layer Source Comment
Size Type Res
Ωcm		 Thick Thick Orient. Dopant Res
Ωcm
S5619 25 $29.60 4" [100] - 420±50 - 762±20µm [112-5º] P >100 Umicore SOI Wafer TTV<3µ, Empak cst.
S5620 2 $49.60 4" - - 400±25 - 80±1µm - B - Umicore SOI Wafer, With Scratches, Empak cst.
S5609 6 $29.60 5" [100] - 625±5 - 20±1µm [100] - - Umicore SOI Wafer SEMI Flat, Empak cst.
5156 72 $39.60 6" p-type Si:B[100] 10-20 625±15 1.0±0.1µm 2.5±0.5µm [100] Si:P 1-4 SVM SOI Wafer, P/E, SEMI Flat, Empak cst. in cassettes of 24 wafers

Solar Cells & Wafers
Note: Surface - P = Polished, E = Etched, C = AsCut
Add to
Cart		 Item Qty in
Stock		 Price
$/wafer		 Material Orient. Diam. Thck
(μm)		 Surf. Source Resistivity
Ohmcm		 Comment
K07 1 $100.00 Solar Si:P Poly       Moscow #7 10 Ohmcm 0.3 kg lot of Solar Cell Silicon chunks

Wafer Cassettes
Note: Surface - P = Polished, E = Etched, C = AsCut, Ox = Oxide (on that surface)
Add to
Cart		 Item Qty in
Stock		 Price
$/unit		 Material Containment Qty Diam. Source Comment
C950 41 $60.00 Cassettes 25 wafers 8" SEMI three part wafer shipping containers (no minimum order), shrink-wrapped, Polypropylene
TF01 5 $200.00 Teflon Wafer Carrier 25 wafers 8" SEMI Natural Teflon (milky white); Fluoroware A192-81M (Low Profile); image available here
TF100 1 $200.00 Teflon Wafer Carrier 25 wafers 8" SEMI Natural Teflon (milky white); Empak XP201-01 (Low Profile)
6256 41 $40.00 150 mm SmartStack 25 wafers 6" Entegris Horizontal Wafer Shippers
D950 8 $15.00 Cassettes 25 wafers 6" SEMI three part wafer shipping containers (no minimum order), Used, unsealed, Polypropylene
6635 96 $30.00 Cassettes 25 wafers 6" Epak due 02/01 ePro, three part wafer shipping containers (no minimum order), shrink-wrapped, Natural polypropylene
6035 12 $30.00 Cassettes 25 wafers 6" Epak ePro, three part wafer shipping containers (no minimum order), shrink-wrapped, Natural polypropylene
H615 1 $6.00 Single Wafer Cassette Cover 1 wafer 6" Entegris H22-601-0615, Cover, Natural polypropylene
F615 67 $3.50 Single Wafer Cassette Spring 1 wafer 6" Entegris H22-602-0615, Spring (no minimum order), Natural polypropylene
G615 1 $6.00 Single Wafer Cassette Tray 1 wafer 6" Entegris H22-60-0615, Tray, Natural polypropylene
L615 10 $20.00 Single Wafer Cassette, 3 Parts 1 wafer 6" MTI SP5-S6, Container, Cover & Spring, Natural polypropylene
TF89 3 $150.00 Teflon Wafer Carrier 25 wafers 6" SEMI Fluoroware A190-60M
TF99 1 $150.00 Teflon Wafer Carrier 25 wafers 6" SEMI Fluoroware A182-60MS-W0-11
TF23 1 $200.00 Teflon Wafer Carrier (BLK) 12 wafers 6" SEMI Fluoroware A182-60MB, for 12 thick wafers
TF86 1 $175.00 Teflon Wafer Carrier (BLK) 25 wafers 6" SEMI Empak X2150-M
TF84 16 $175.00 Teflon Wafer Carrier (BLK) 25 wafers 6" SEMI Fluoroware A182-60M STAT-PRO
TF81 7 $175.00 Teflon Wafer Carrier (BLU) 25 wafers 6" SEMI Empak X2150-25
TF85 2 $175.00 Teflon Wafer Carrier (GRY) 25 wafers 6" SEMI Empak X2150-M
TF80 2 $175.00 Teflon Wafer Carrier (YEL) 25 wafers 6" SEMI Empak X2150-25
TF79 2 $25.00 Wafer Shipping Cassette 25 wafers 6" AT&T Wafer Shipper with PX1150-25 basket
D567 6 $32.00 Cassettes 25 wafers 5" ECC Three part wafer shipping containers (no minimum order), shrink-wrapped, Natural polypropylene
E567 4 $8.00 Cassettes 25 wafers 5" ECC Three part wafer shipping containers (no minimum order), UNSEALED, NOT CLEAN, Natural polypropylene
TF16 80 $125.00 Teflon Wafer Carrier 25 wafers 5" SEMI Fluoroware A182-50M
TF75 4 $150.00 Teflon Wafer Carrier (BLK) 25 wafers 5" SEMI Empak X3125-25
TF74 30 $150.00 Teflon Wafer Carrier (BLK) 25 wafers 5" SEMI Fluoroware A182-50M
TF82 2 $150.00 Teflon Wafer Carrier (BLU) 25 wafers 5" SEMI Empak X2125-25
TF83 8 $150.00 Teflon Wafer Carrier (GRY) 25 wafers 5" SEMI Empak X3125-25
TF78 17 $125.00 Teflon Wafer Carrier (YEL) 25 wafers 5" SEMI Empak X3125-25
6679 72 $20.00 Cassettes 25 wafers 4" Epa due 03/31k ePro, three part wafer shipping containers (no minimum order), shrink-wrapped, Natural polypropylene
D968 85 $12.00 Cassettes 25 wafers 4" Tek 2 Part Soft shipping containers (no minimum order), Tek Packaging 4-100-030V
6408 39 $20.00 Cassettes 25 wafers 4" Epak ePro, three part wafer shipping containers (no minimum order), shrink-wrapped, Natural polypropylene
TF90 1 $50.00 Polypropylene Wafer Carrier 25 wafers 4" SEMI Fluoroware A189-40-09
1213 10 $18.00 Single Wafer Cassette 1 wafer 4" MTI Gel Sticky Carrier Box, 120×120mm, MTI SP1-12012T/BK-LL
WC030 16 $4.00 Single Wafer Cassette Cover 1 wafer 4" Fluoroware Top Part
WC032 1 $10.00 Single Wafer Cassette Set 1 wafer 4" Fluoroware Cover, Spring, Tray
K262 80 $1.40 Single Wafer Cassette Spring 1 wafer 4" Entegris H22-402A-0615, Spring (no minimum order), Natural polypropylene
WC016 47 $2.50 Single Wafer Cassette Spring 1 wafer 4" Fluoroware H22-402
WC017 62 $2.50 Single Wafer Cassette Spring 1 wafer 4" Fluoroware Spring
WC010 600 $2.50 Single Wafer Cassette Spring 1 wafer 4" Fluoroware H22-402C-0815
TF20 16 $100.00 Teflon Wafer Carrier 25 wafers 4" Fluoroware A182-39MLB
TF19 34 $100.00 Teflon Wafer Carrier 25 wafers 4" SEMI Fluoroware A72-40MB
TF21 6 $100.00 Teflon Wafer Carrier 25 wafers 4" Fluoroware A182-39M

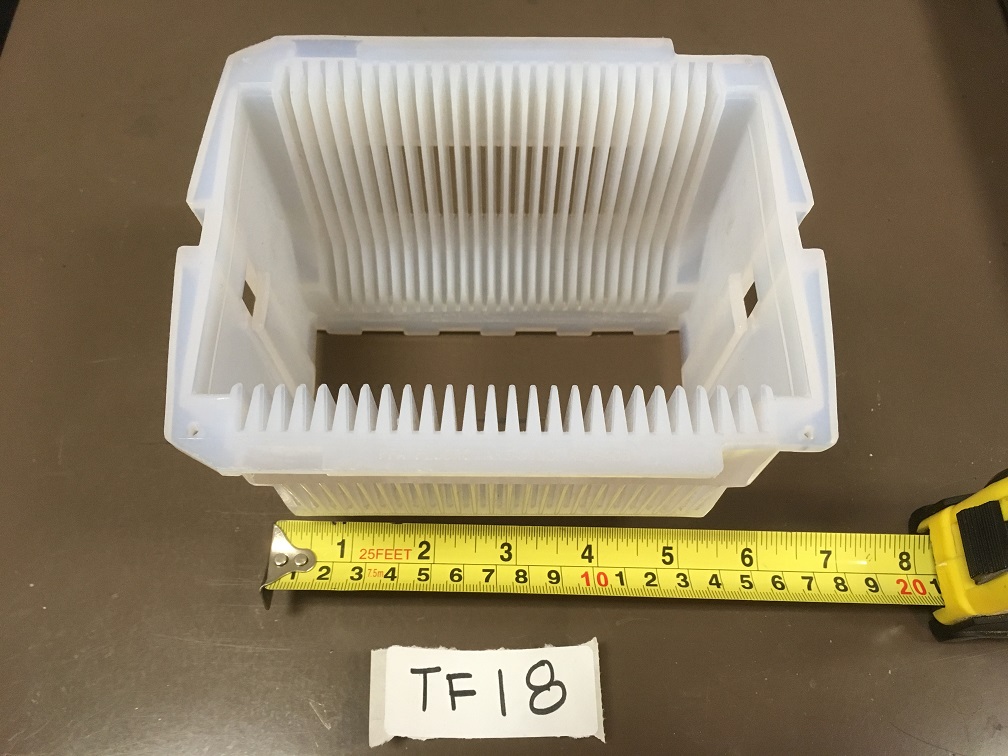

TF18 27 $100.00 Teflon Wafer Carrier 25 wafers 4" SEMI Fluoroware A72-40B; image available here
TF77 3 $125.00 Teflon Wafer Carrier 25 wafers 4" Empak X3100-25
TF97 1 $100.00 Teflon Wafer Carrier 25 wafers 4" SEMI Fluoroware A72-41M
TF24 2 $125.00 Teflon Wafer Carrier (BLK) 25 wafers 4" Empak X3100-25
TF26 33 $125.00 Teflon Wafer Carrier (BLK) 25 wafers 4" Fluoroware A182-39MU
TF71 6 $125.00 Teflon Wafer Carrier (BLK) 25 wafers 4" Entegris X3100-25
TF76 15 $125.00 Teflon Wafer Carrier (BLU) 25 wafers 4" Empak X3100-25
I847 3 $4.00 Cassettes 25 wafers 3" SEMI Three part wafer shipping containers (no minimum order), Unsealed, used, Natural polypropylene
5828 45 $14.50 Cassettes 25 wafers 3" ePAK H6630-0009, two part wafer shipping containers (no minimum order), shrink-wrapped, Natural polypropylene
WC018 146 $3.00 Single Wafer Cassette Cover 1 wafer 3" Fluoroware Top part
WC001 623 $3.00 Single Wafer Cassette Cover 1 wafer 3" Entegris H22-301-0615
WC002 80 $3.00 Single Wafer Cassette Cover 1 wafer 3" Fluoroware H22-301C-0613
WC009 258 $2.00 Single Wafer Cassette Spring 1 wafer 3" Entegris H22-302-0815
WC005 131 $3.00 Single Wafer Cassette Tray 1 wafer 3" Entegris H22-30-0615

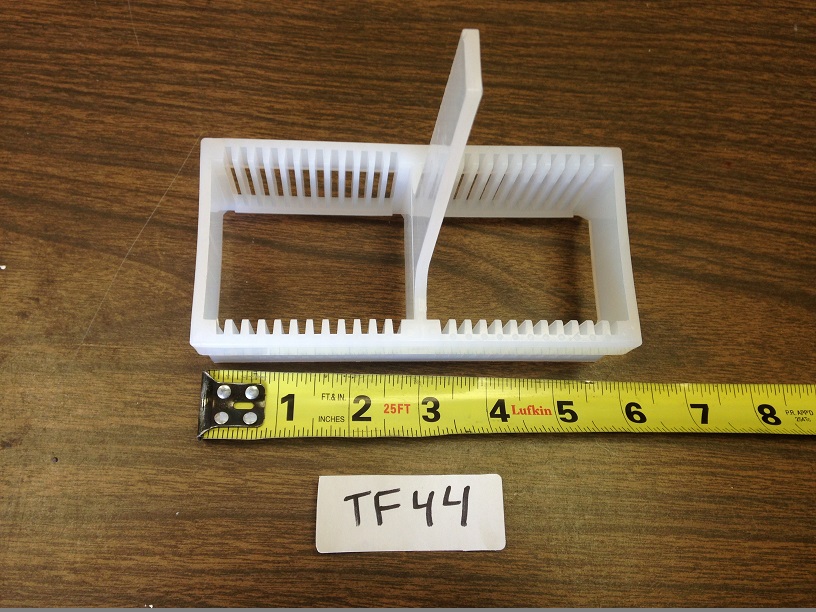

TF44 3 $50.00 Teflon Dunk Basket 24 wafers 3" Fluoroware A29-50B, for 24 of 2.5"Ø wafers; image available here

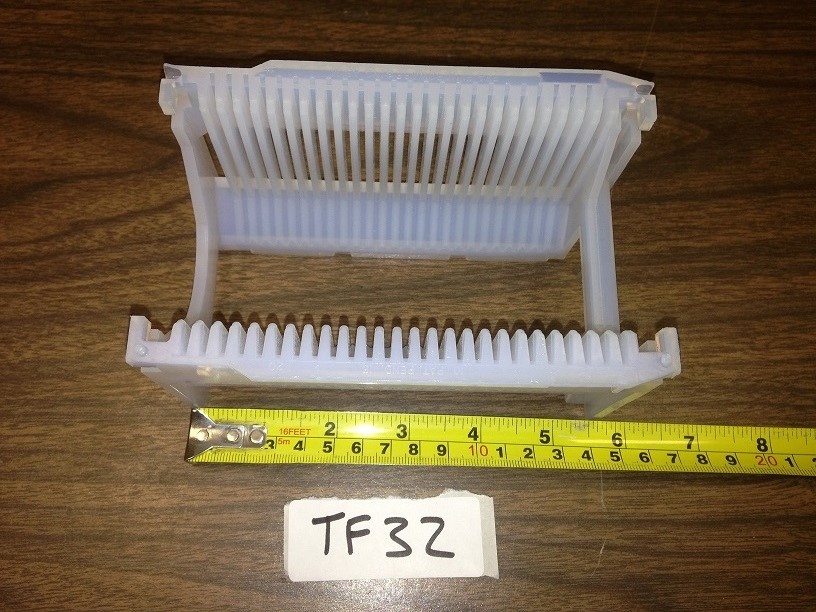

TF32 92 $75.00 Teflon Wafer Carrier 25 wafers 3" Fluoroware A82M; image available here
TF36 18 $100.00 Teflon Wafer Carrier 13 wafers 3" Fluoroware A82M-12B, for 12 of thick 3"Ø wafers
TF37 10 $75.00 Teflon Wafer Carrier 25 wafers 3" Fluoroware A82M
TF43 3 $50.00 Teflon Wafer Carrier 50 wafers 3" Fluoroware Half length cassette, for 25 thin 2"Ø wafers
WC007 200 $3.00 Single Wafer Cassette Cover 1 wafer 2.5" Fluoroware H22-251-0615
WC028 25 $2.00 Single Wafer Cassette Spring 1 wafer 2.5" Fluoroware Spring
WC020 200 $2.00 Single Wafer Cassette Spring 1 wafer 2.5" Fluoroware H22-252-0815
WC004 50 $3.00 Single Wafer Cassette Tray 1 wafer 2.5" Entegris H22-25-0615
6341 79 $14.50 Shipping Cassette 25 wafers 2" Entegris H6620-0009, two part wafer shipping containers no minimum order
1039 5 $5.00 Single Wafer Cassette 1 wafer 2" MTI Membrane Film Container, 60×60×10mm, MTI SP3-7512
8349 1655 $4.00 Single Wafer Cassette 1 wafer 2" Nasko Top-Bottom-Spring set {Fluoroware equivalent}, Made by Nasko
WC013 66 $2.00 Single Wafer Cassette Cover 1 wafer 2" Entegris H22-201-0615
WC011 536 $1.50 Single Wafer Cassette Spring 1 wafer 2" Fluoroware H22-202-0815
WC027 42 $1.50 Single Wafer Cassette Spring 1 wafer 2" Fluoroware H22-202
WC012 221 $2.00 Single Wafer Cassette Tray 1 wafer 2" Entegris H22-20-0615

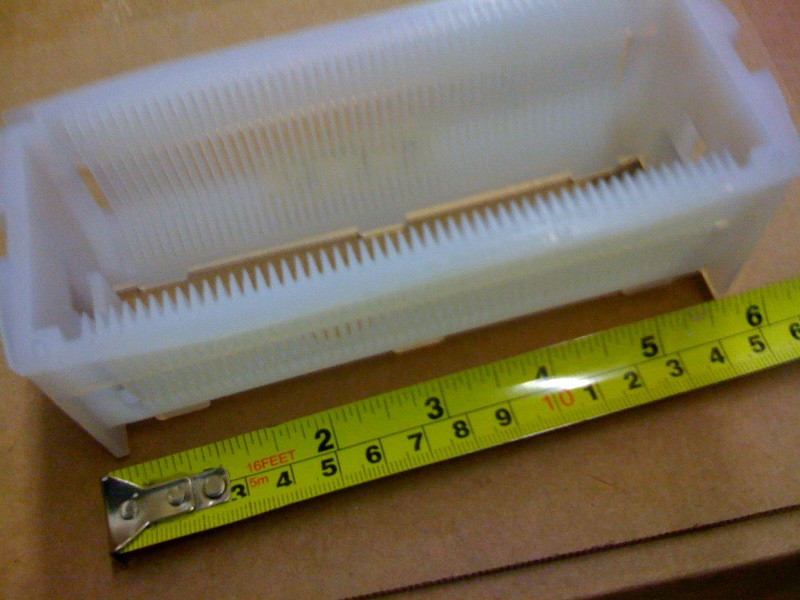

TF10 12 $75.00 Teflon Wafer Carrier 50 wafers 2" Fluoroware A74-PFA; Natural Teflon (milky white), for 50 of thin 2"Ø wafers; image available here
WC022 4 $2.00 Single Wafer Cassette Cover 1 wafer 1.5" Fluoroware H22-151
WC008 289 $2.00 Single Wafer Cassette Cover 1 wafer 1.5" Fluoroware H22-151-0615
WC015 27 $2.00 Single Wafer Cassette Cover 1 wafer 1.5" Fluoroware H22-151
WC026 37 $1.50 Single Wafer Cassette Spring 1 wafer 1.5" Fluoroware H22-152
WC021 100 $1.50 Single Wafer Cassette Spring 1 wafer 1.25" Fluoroware H22-125

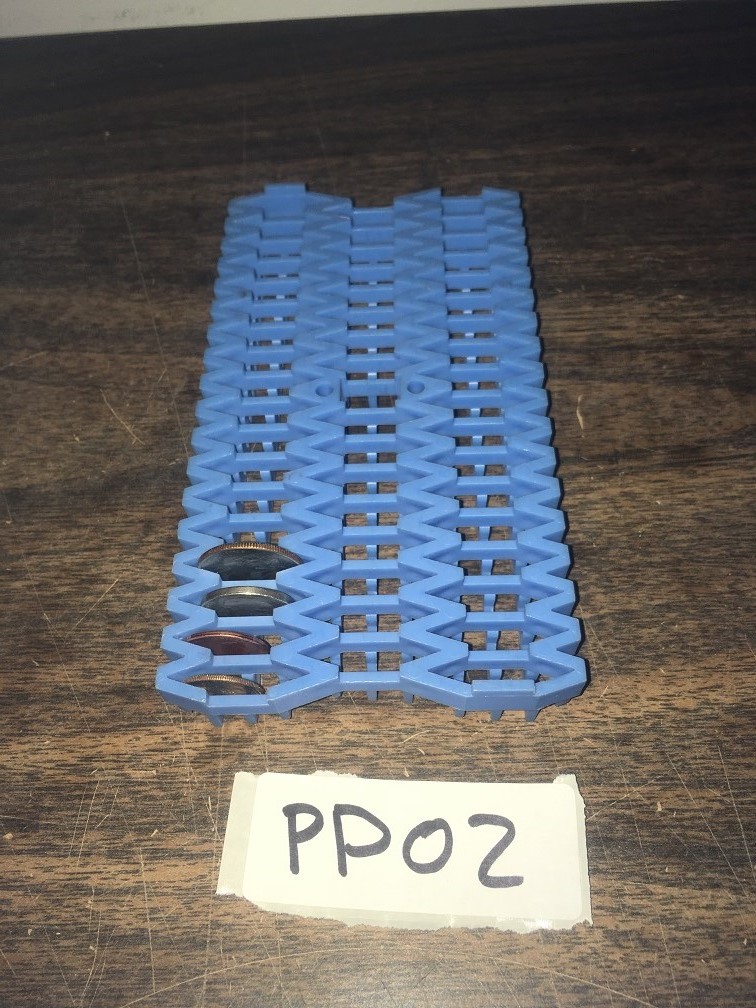

PP02 36 $20.00 Polypropylene Wafer Carrier (BLU) 52 wafers 27mm For 52 of 27mm wafers (3.55"×6.5"×0.75" overall); image available here
N406 16 $10.00 Hard Cassette Natural PP 25 wafers 1" ePak Double sealed in groups of 10
5044 10 $10.00 Hard Cassette Natural PP 25 wafers 1" ePak Double sealed in groups of 10
6500 100 $10.00 Hard Cassette Natural PP 25 wafers 1" ePak Double sealed in groups of 10
WC014 85 $2.00 Single Wafer Cassette Cover 1 wafer 1" H22-101-0615
WC023 13 $2.00 Single Wafer Cassette Cover 1 wafer 1" Fluoroware Top part
5856 50 $4.20 Single Wafer Cassette Cover, Tray and Spring 1 wafer 1" Fluoroware All three parts
WC025 90 $1.50 Single Wafer Cassette Spring 1 wafer 1" H22-102-0815
WC024 14 $2.00 Single Wafer Cassette Tray 1 wafer 1" Fluoroware Bottom part
3847 20 $5.00 Soft Cassette 25 wafers 1" ePak Vacuum formed plastic, double sealed in groups of 10
TF50 4 $10.00 Polyethylene Drain Basket 4.5" OD
TF93 1 $25.00 Polypropylene (BLU) Carrier Squeeze Handle Fluoroware A72-40-03
TF94 1 $25.00 Polypropylene Carrier Handle Beige, 3"×9"×0.6" overall
TF56 5 $25.00 Teflon Carrier Locking Handle Fluoroware A040-103-2015
TF72 1 $25.00 Teflon Carrier Squeeze Handle Fluoroware A72-40-02
TF92 1 $25.00 Teflon Carrier Squeeze Handle PFA
TF61 3 $25.00 Teflon Carrier Squeeze Handle Fluoroware A044
TF55 4 $25.00 Teflon Carrier Squeeze Handle Entegris A72-40-60-2015
TF57 6 $25.00 Teflon Carrier Squeeze Handle Fluoroware A040-02
TF58 17 $25.00 Teflon Carrier Squeeze Handle Fluoroware A018
TF62 9 $25.00 Teflon Carrier Squeeze Handle Fluoroware A048; image available here
TF63 11 $25.00 Teflon Carrier Squeeze Handle Fluoroware A049
TF64 3 $25.00 Teflon Carrier Squeeze Handle Fluoroware A72-40-03
TF65 4 $25.00 Teflon Carrier Squeeze Handle Fluoroware A72-40-06
TF66 3 $25.00 Teflon Carrier Squeeze Handle Fluoroware A72-50-03
TF67 21 $25.00 Teflon Carrier Squeeze Handle Fluoroware A82-03; image available here
TF69 7 $25.00 Teflon Carrier Squeeze Handle Fluoroware A72-20-04
TF70 1 $25.00 Teflon Carrier Squeeze Handle Fluoroware D15
TF48 1 $25.00 Teflon Carrier Squeeze Handle Unmarked
TF59 10 $25.00 Teflon Carrier Squeeze Handle Fluoroware A027

80 Railroad Ave., Ridgefield Park, NJ 07660 USA;  tel: 201-444-7343;  fax: 201-444-7933;  e-mail: el-cat@el-cat.com
Web Site Developed By: Mark Zakrzewski mark@el-cat.com
